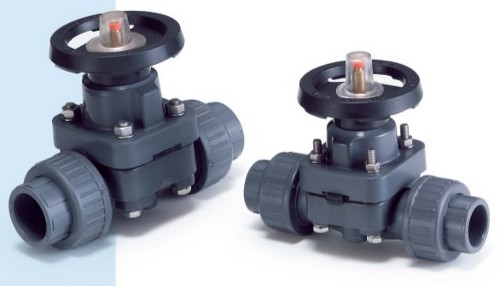

True Union Diaphragm Valve DF Series

Descripción Técnica

DF100 Sin Rosca / DF200 Roscado
Material: UPVC, PP, CPVC, PPG, PVDF
Medidas: 1/2" a 2"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
Socket
Thread
P
B
L
H
A
F
K
1/2"
0.84
NPT1/2
0.875
2.126
6.53
4.094
3.189
0.984
5/16"
3/4"
1.05
NPT3/4
1.000
2.126
6.53
4.094
3.189
0.984
5/16"
1"
1.32
NPT1
1.125
2.480
7.2
4.567
3.583
0.984
5/16"
1 1/4"
1.66
NPT1-1/4
1.250
3.5
9.37
5.591
4.606
1.772
5/16"
1 1/2"
1.90
NPT1-1/2
1.375
3.5
9.37
5.591
4.606
1.772
5/16"
2"
2.38
NPT2
1.500
3.97
10.74
6.929
5.906
1.772
5/16"
